| Machine Axes | ||
|---|---|---|
| 1 | Wire Feeding | 6.5 kW |
| 2 | Outer Diameter | 2.7 kW |
| 3 | Upper Cutter / Pitch | 4.5 kW |
| 4 | Pitch / Lower Cutter | 4.5 kW |
| 5 | Hoz. Pitch | 1.0 kW |

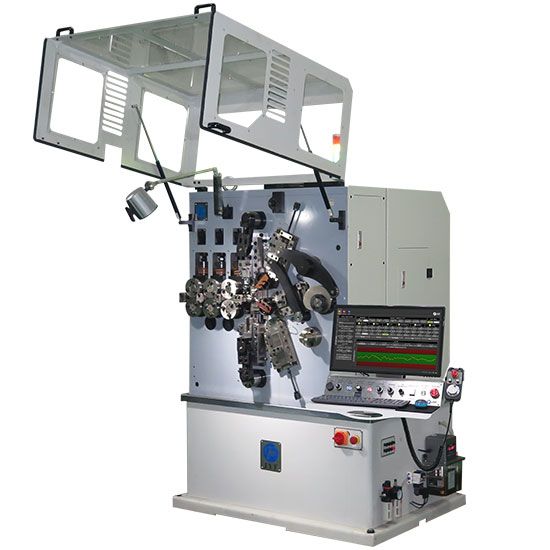

| SPRING COILER MODEL | JYF-C410 | JYF-C510P |
| Servo Axes | 4 | 5 |
| Wire Diameter Range | 0.20 mm ~ 1.00 mm | 0.20 mm ~ 1.00 mm |
| Maximum Outside Diameter (OD) (mm) | 25 mm | 25 mm |
| Feed Rollers Pairs | 1 | 1 |
| Maximum Wire Feed Speed (m/min) | 200 m/min | 200 m/min |
| Coiling Direction | Right And Left Hand | Right And Left Hand |
| Minimum Spring Index | 3 | 3 |
| Maximum Output Spring – Ring / min | 500 ~ 1000 | 500 ~ 1000 |
| Installed Power (kW) | 5.2 kW | 5.6 kW |
| Cutting System | Swing / Twist | Swing / Twist |
| Air Cylinder (units) | 4 units | 4 units |
| Air Pressure (MPa) | 0.7 MPa | 0.7 MPa |
| Machine Depth (mm) | 1100 mm | 1100 mm |
| Machine Width (mm) | 1720 mm | 1720 mm |
| Machine Height (mm) | 1920 mm | 1920 mm |
| Machine Weight (kg) | 530 kg | 680 kg |
| Decoiler | JYF-S100 (100 kg) | JYF-S100 (100 kg) |
